Laineng S109 solar e-scooter and its rider standing in a modern city plaza
  • Solar panel icon 10-20km/day Solar range extension
  • Battery range icon 35-40km Battery range
  • LiFePO4 battery icon 48V 12Ah LiFePO4 battery
  • Digital motor icon 500W Digital motor
  • Suspension icon Suspension Front & rear dual suspension
  • Disc brake icon Disc brakes Front & rear dual disc brakes

“Dual Charging” System

Solar charging + emergency charging — adapts to all weather conditions to meet your riding needs

Laineng S109 solar charging

Sunny days – automatic solar charging

Parking icon
Parked charges automatically
Riding icon
Riding charges while you ride

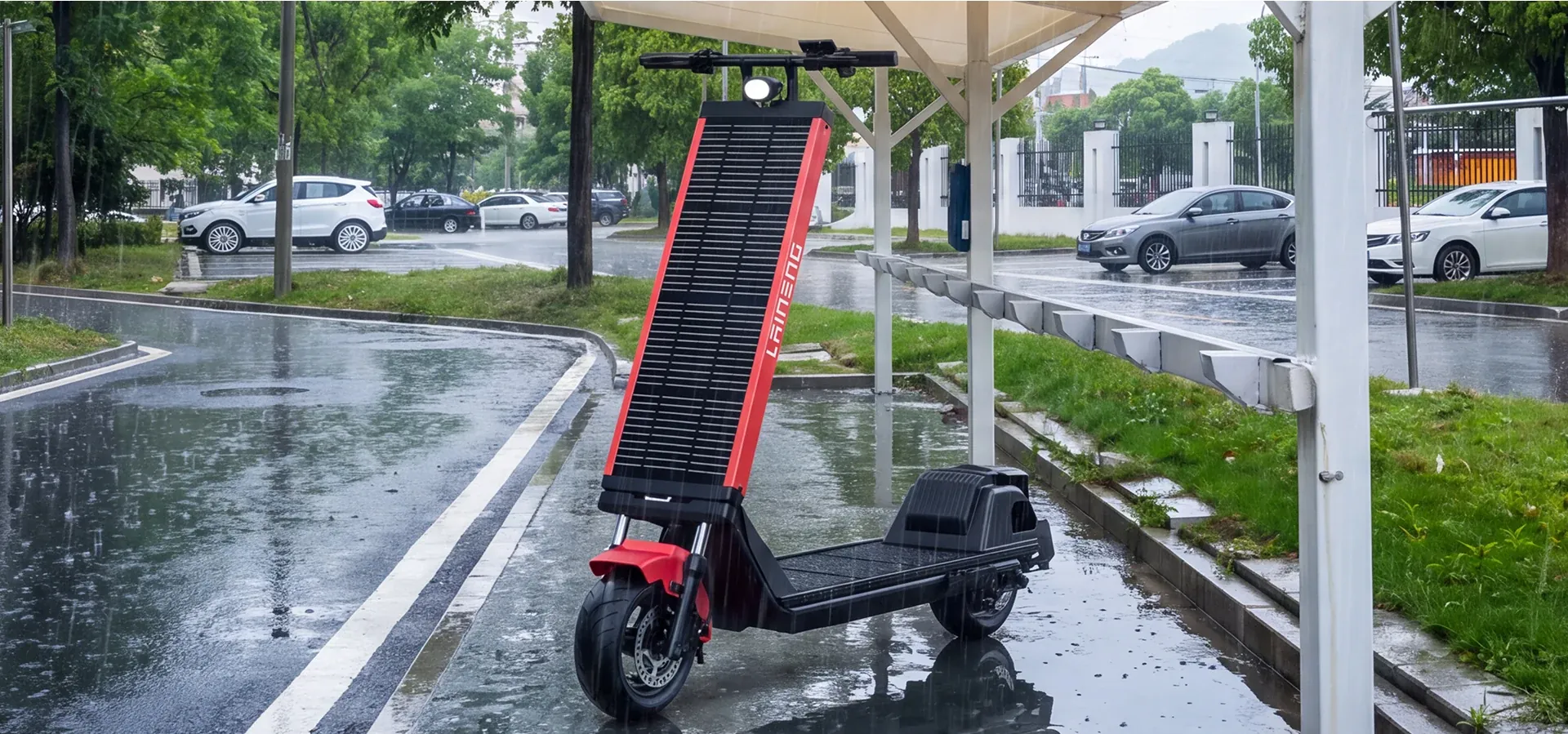

Laineng S109 in the rain
Consecutive rainy days emergency charging with the charger
Built-in battery icon
Built-in lithium battery Range 35-40 km
Emergency charging port icon
Emergency charging port
Get to know the solar scooter in
one minute

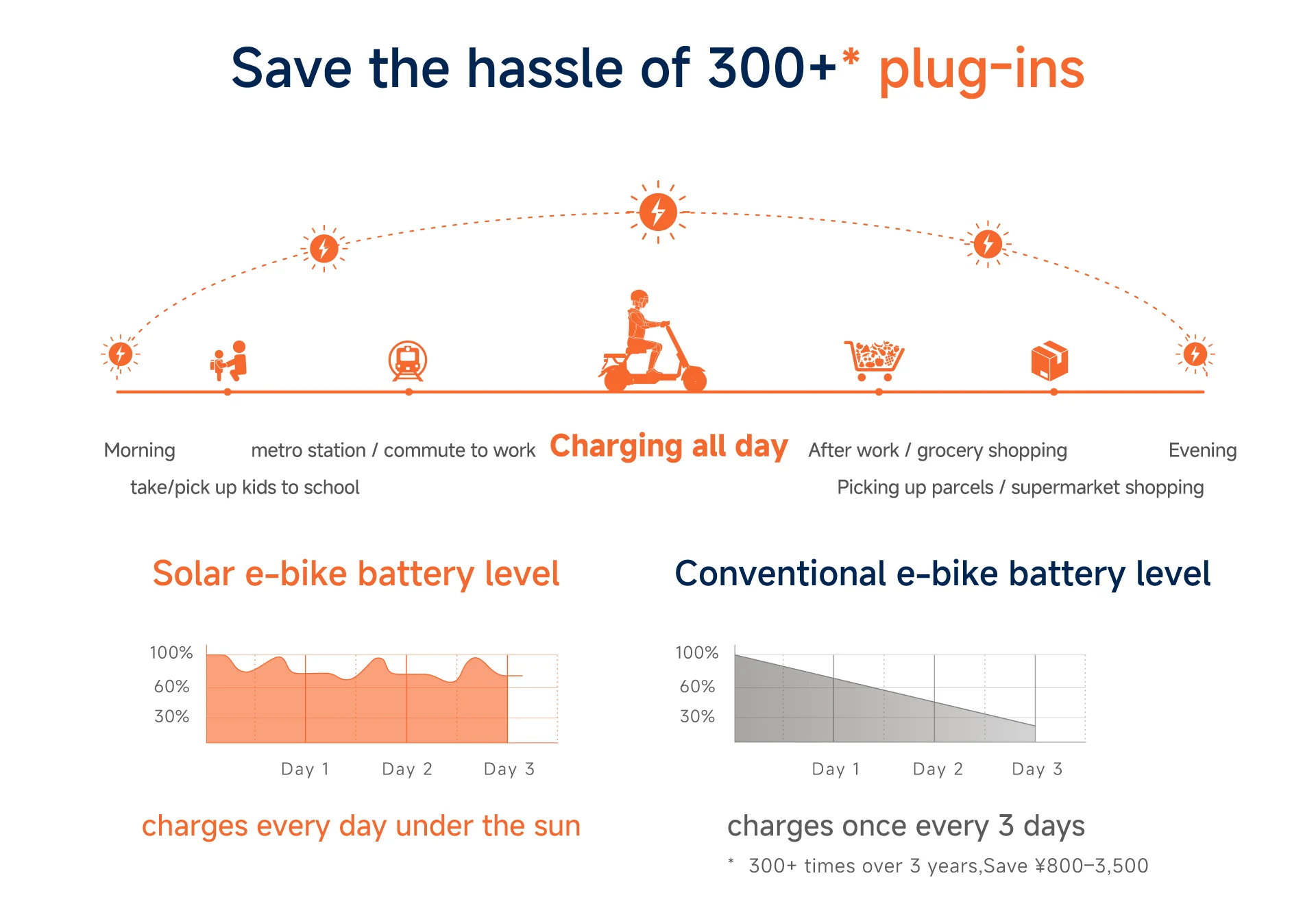

Laineng S109 solar e-scooter - save the hassle of 300+ plug-ins: all-day solar charging vs conventional e-bike battery level over 3 days
Comparison of a 48V solar scooter and a 220V conventional scooter charging system

Why is it safer ?

Solar scooter

S109(images 1)

Solar charging

48v

low-voltage balanced

charging

S109(images 2)

Extends battery life

Conventional scooter

S109(images 3)

Plug-in charging

220v

high-voltage

high-current charging

S109(images 4)

Accelerates battery aging

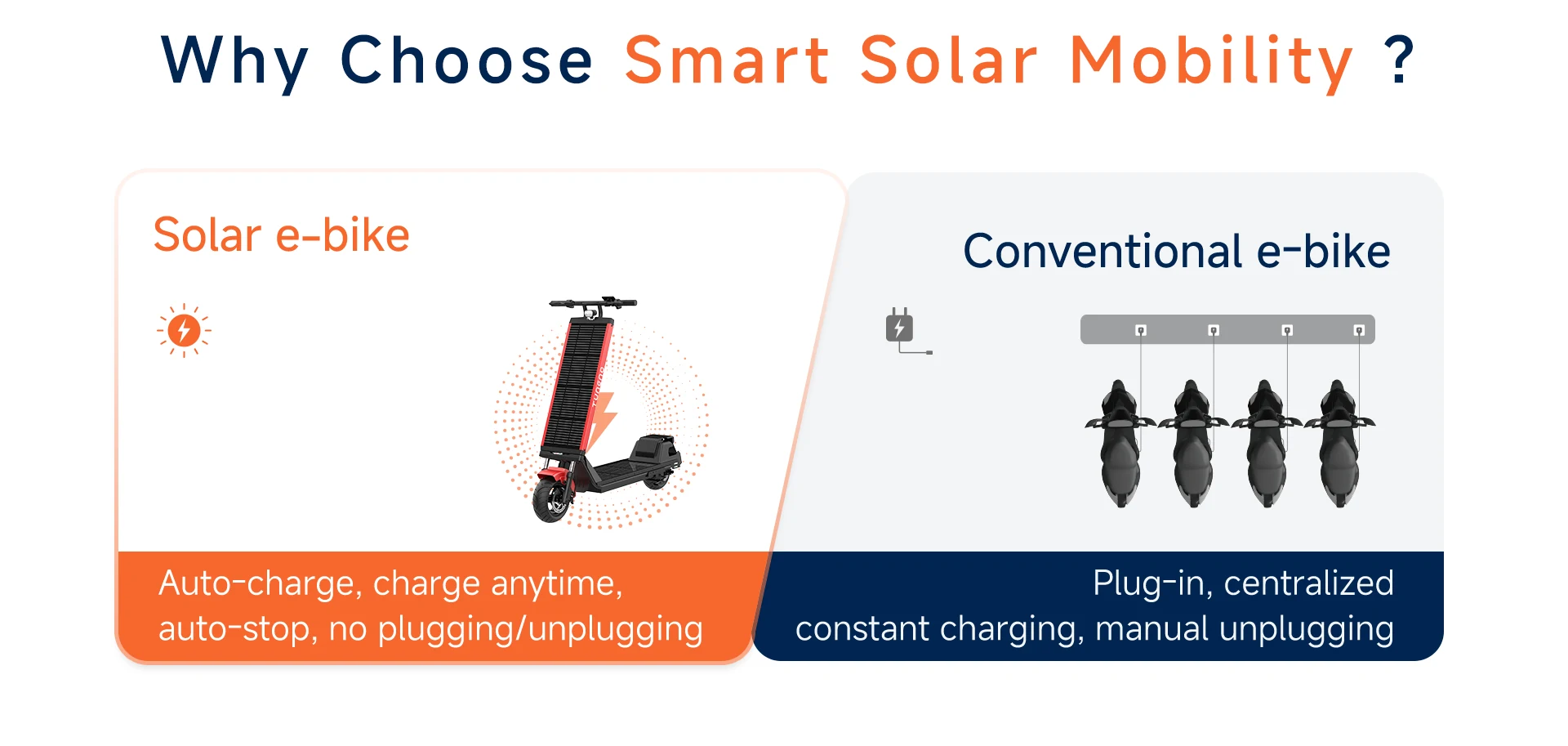

Laineng S109 smart features

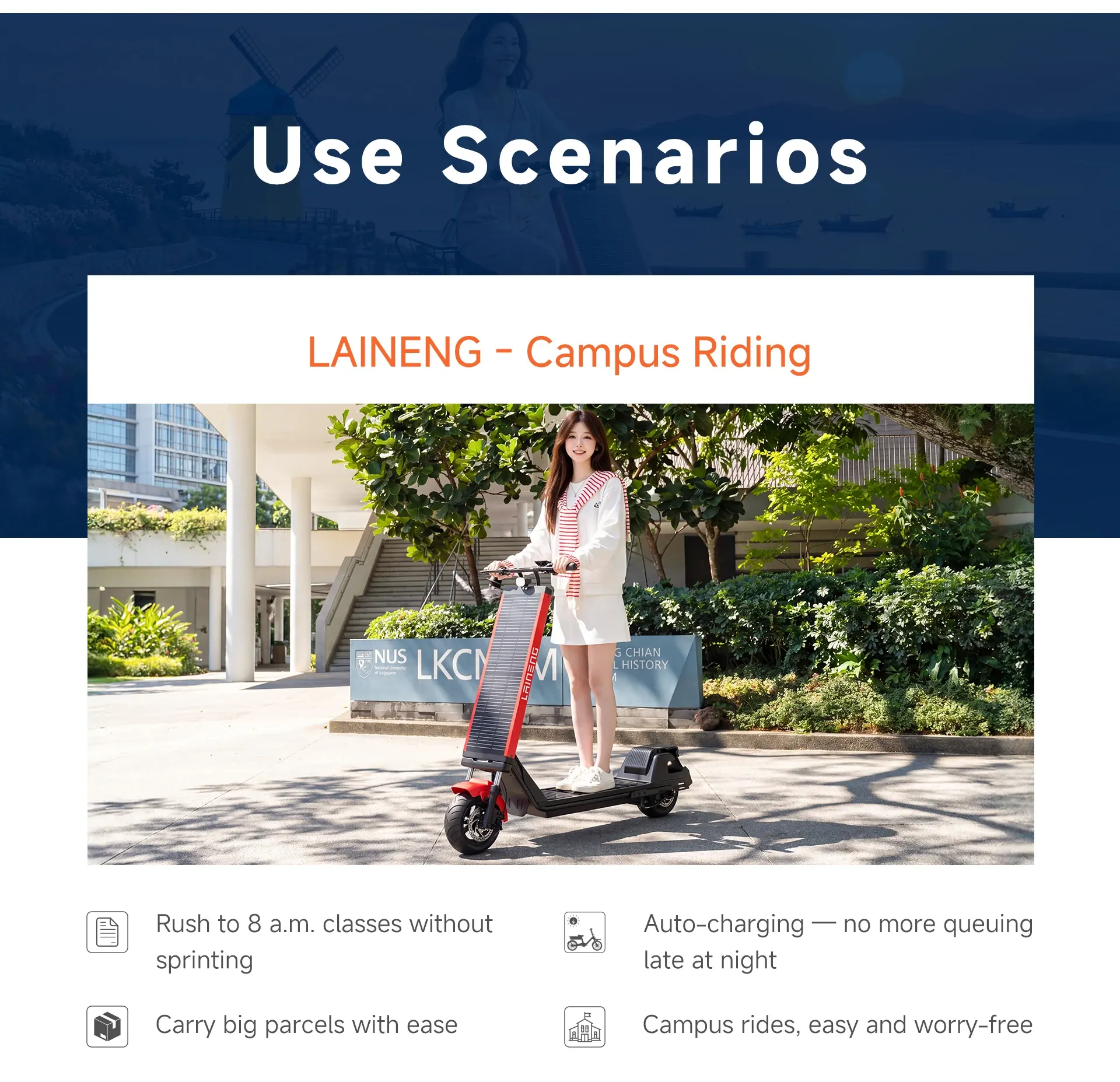

Laineng S109 solar e-scooter - Campus Riding
Laineng S109 solar e-scooter - City Commuting
Laineng S109 solar e-scooter - Scenic Spot Sharing

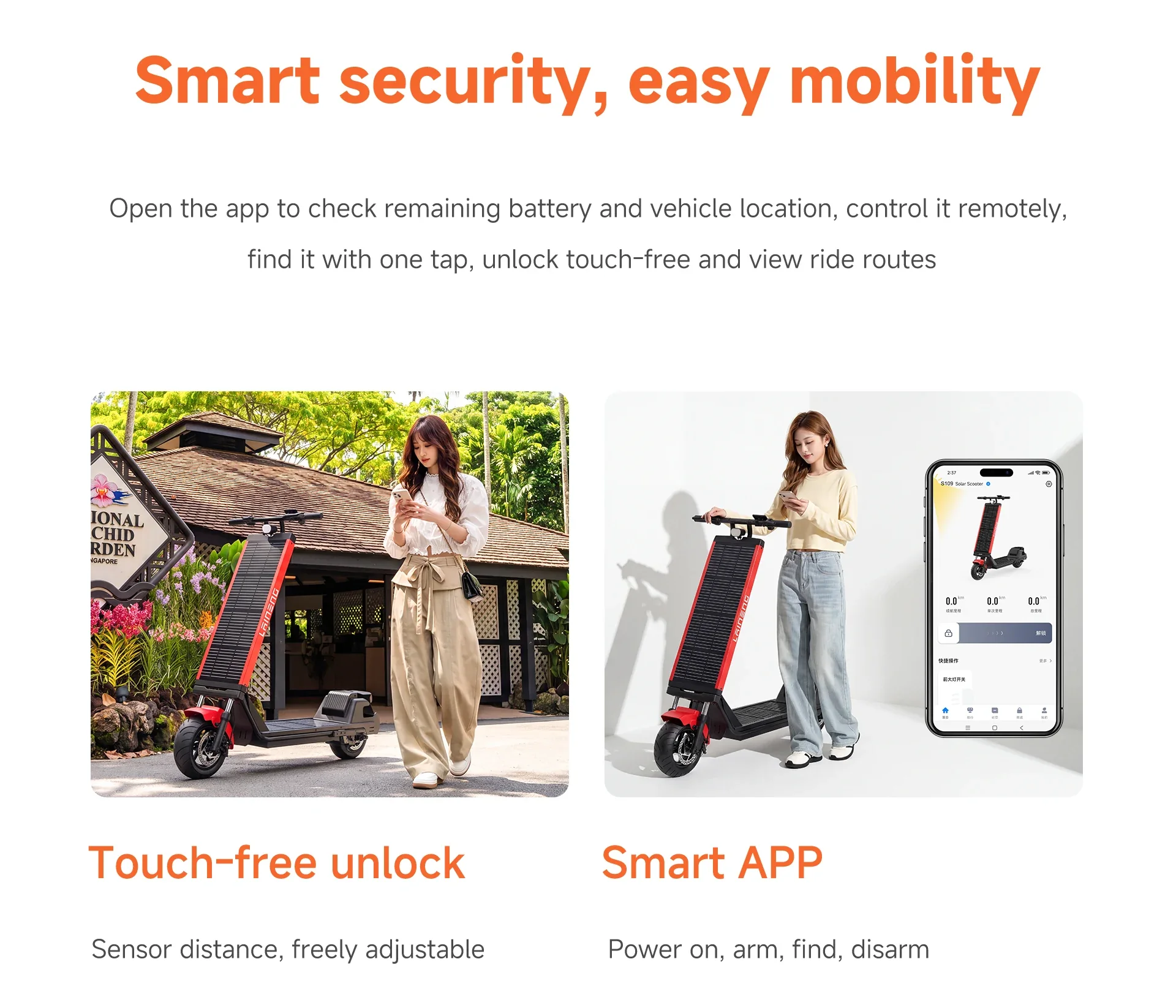

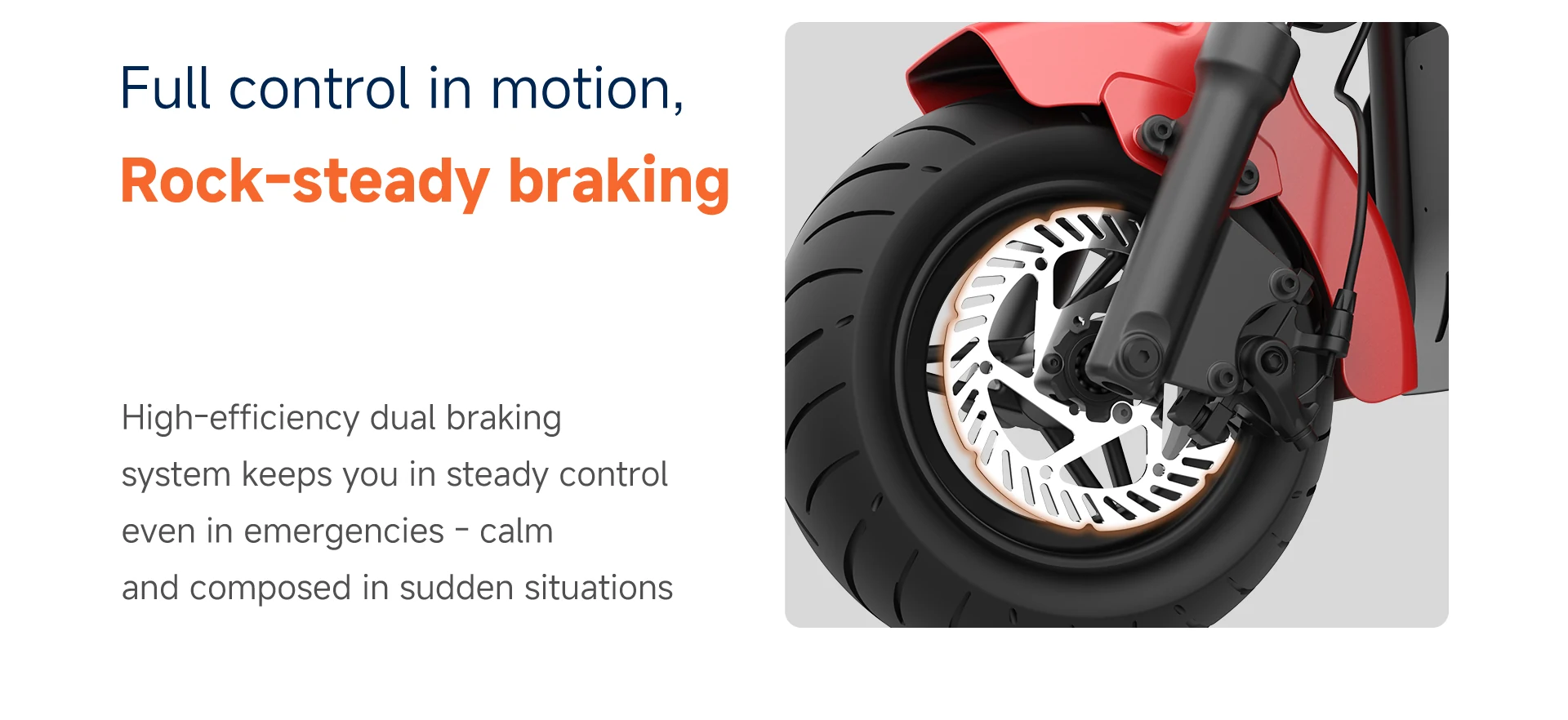

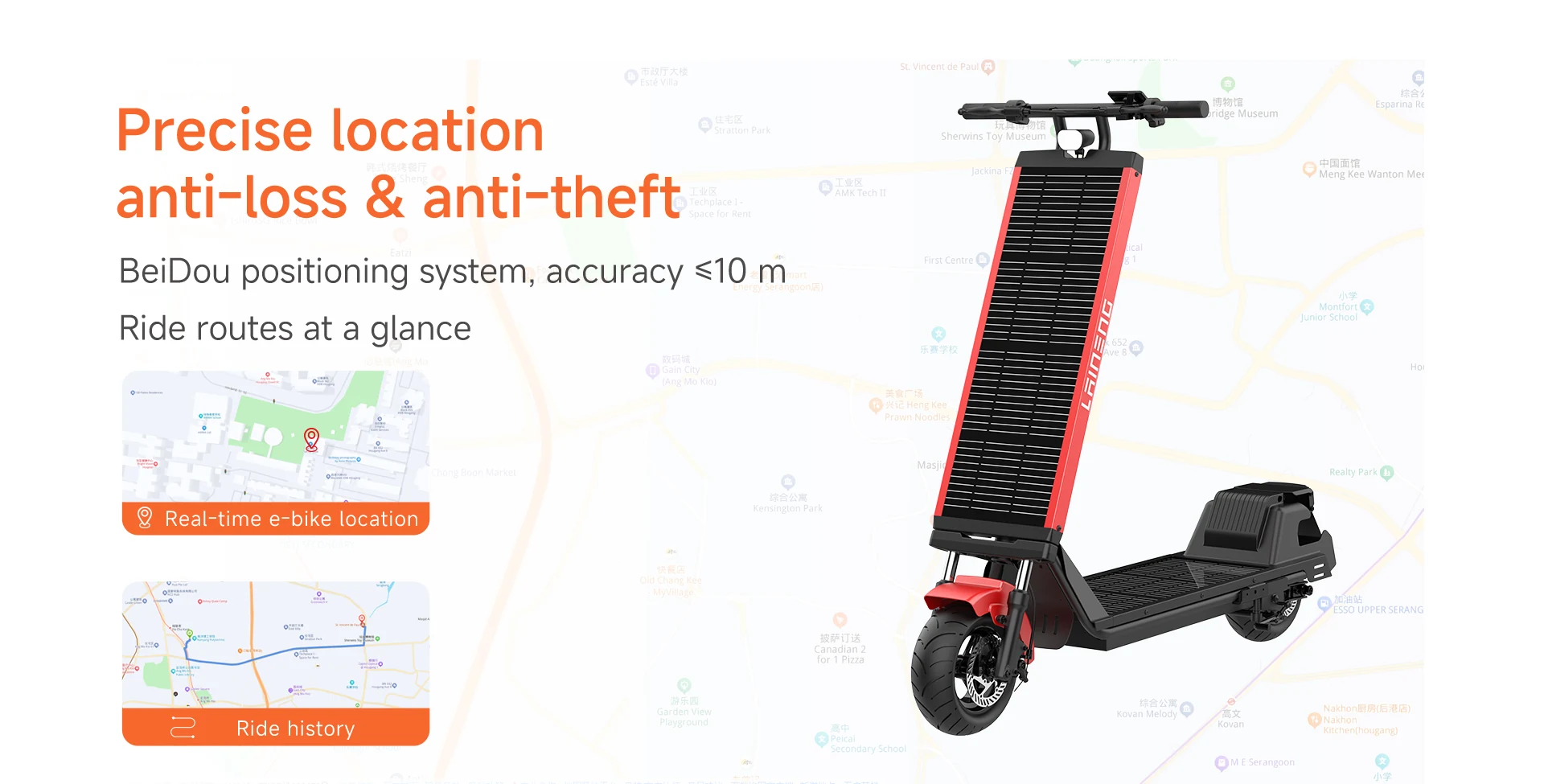

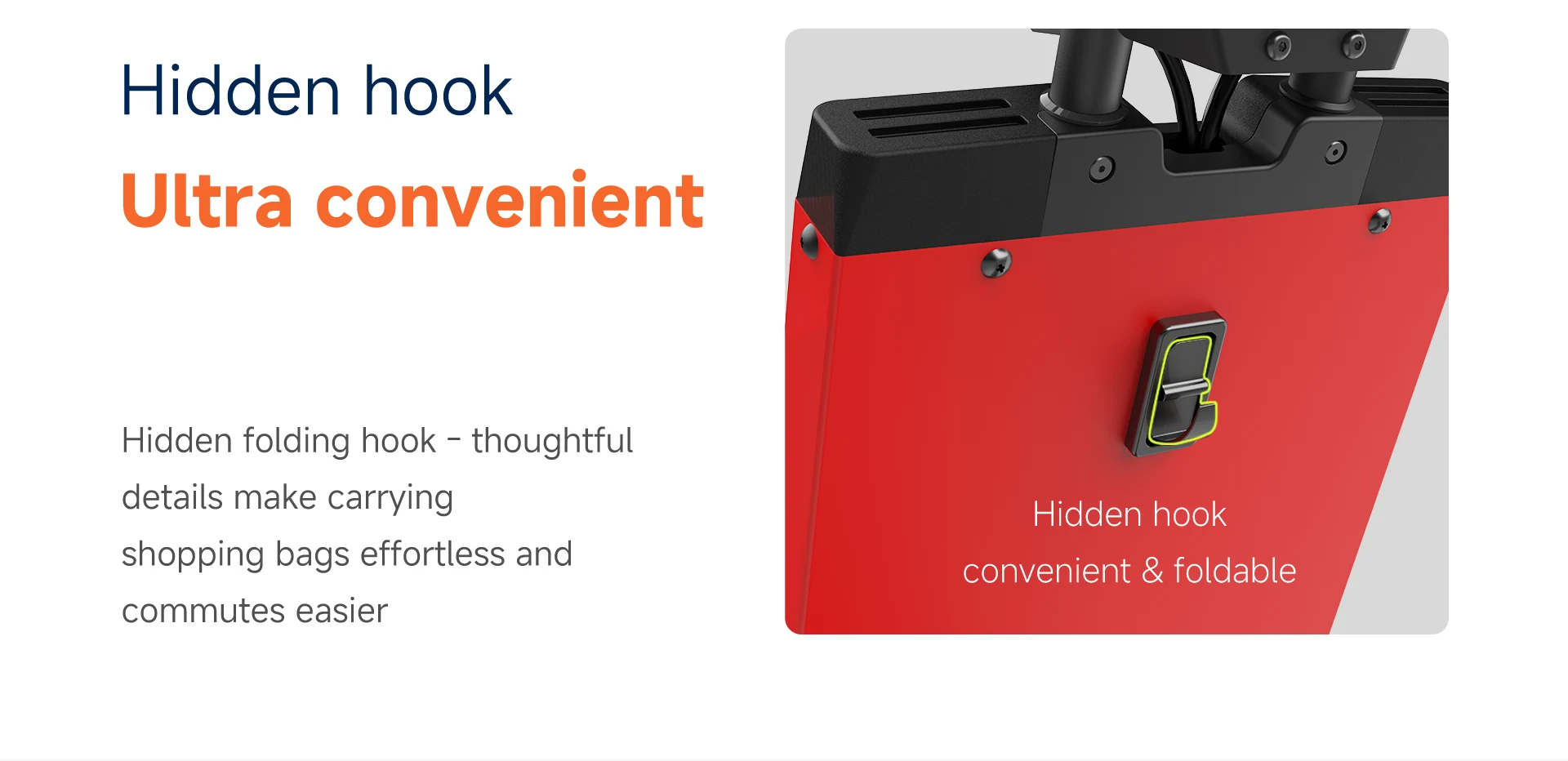

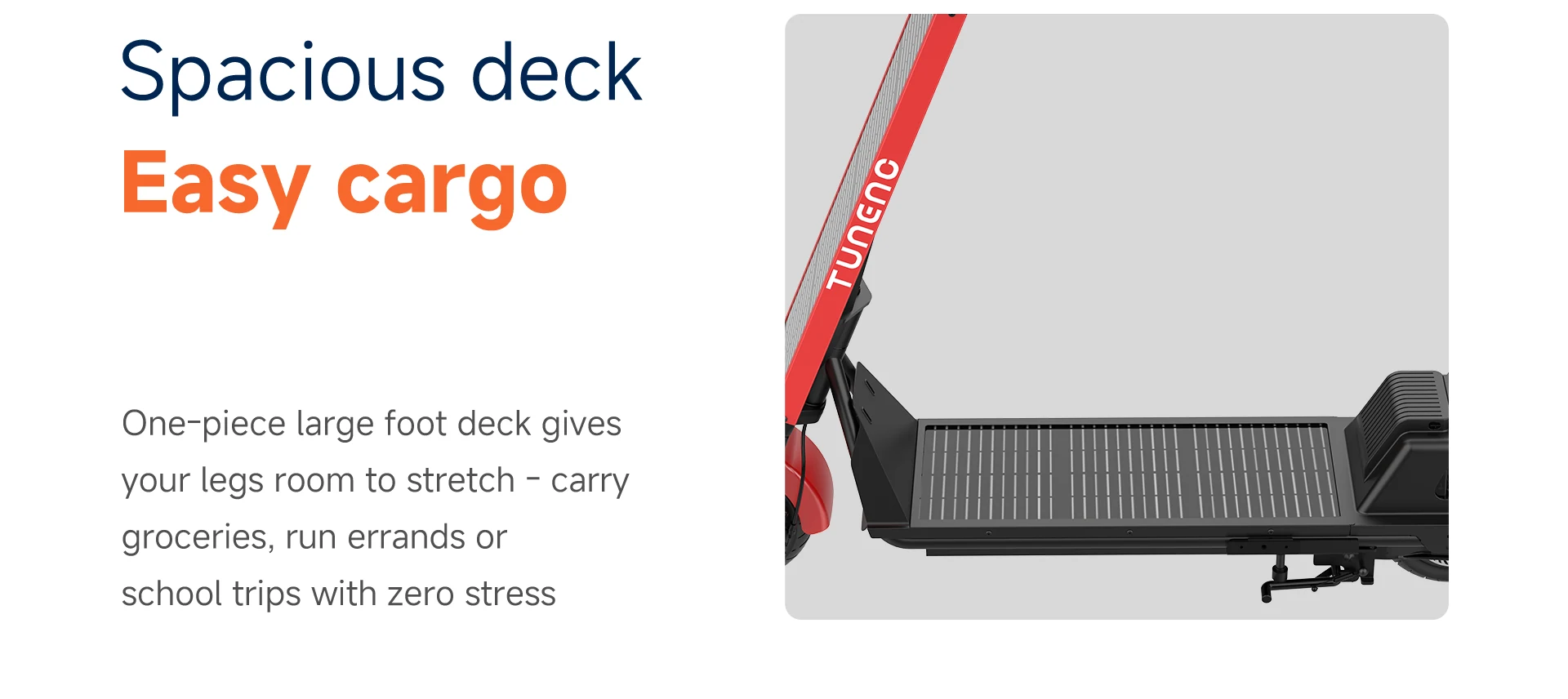

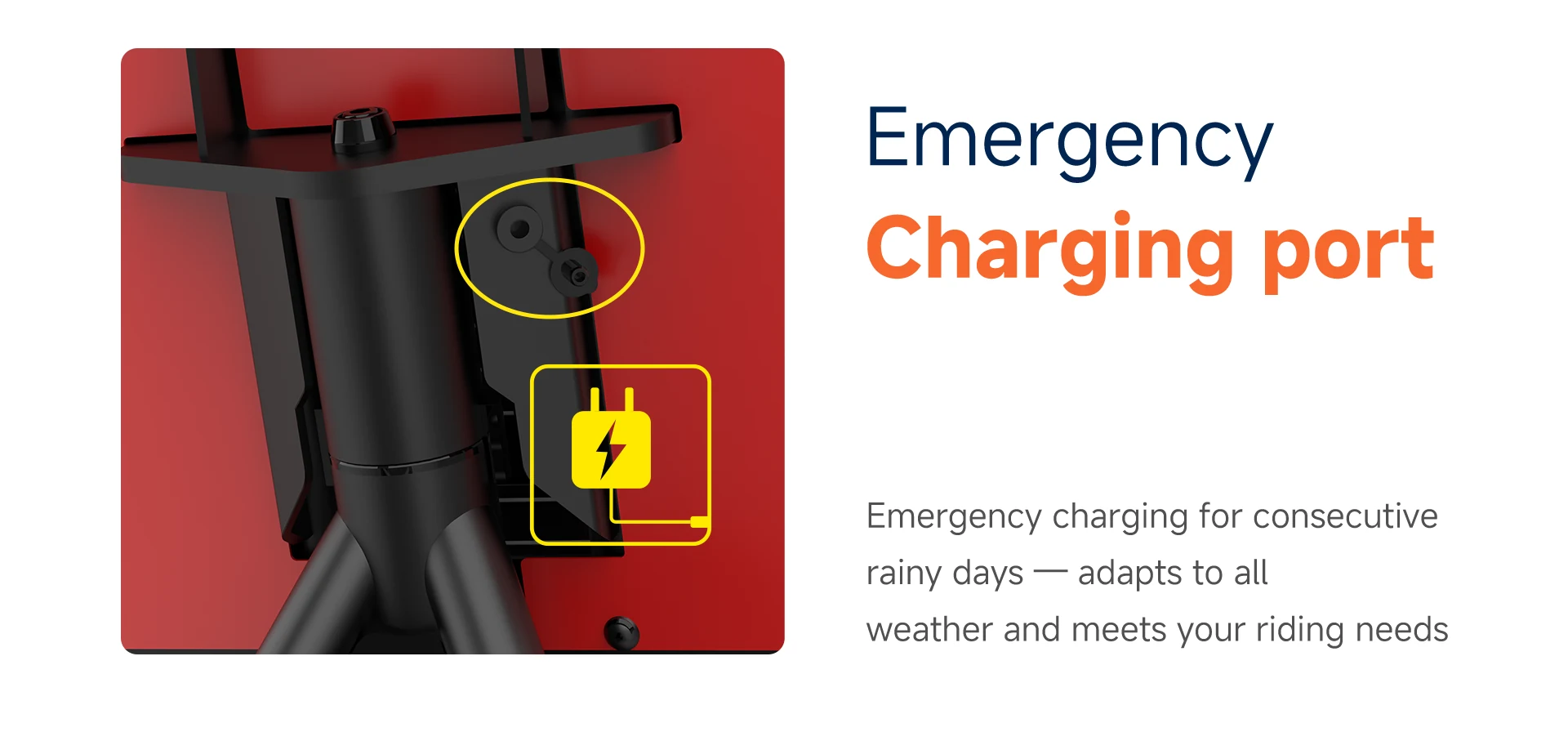

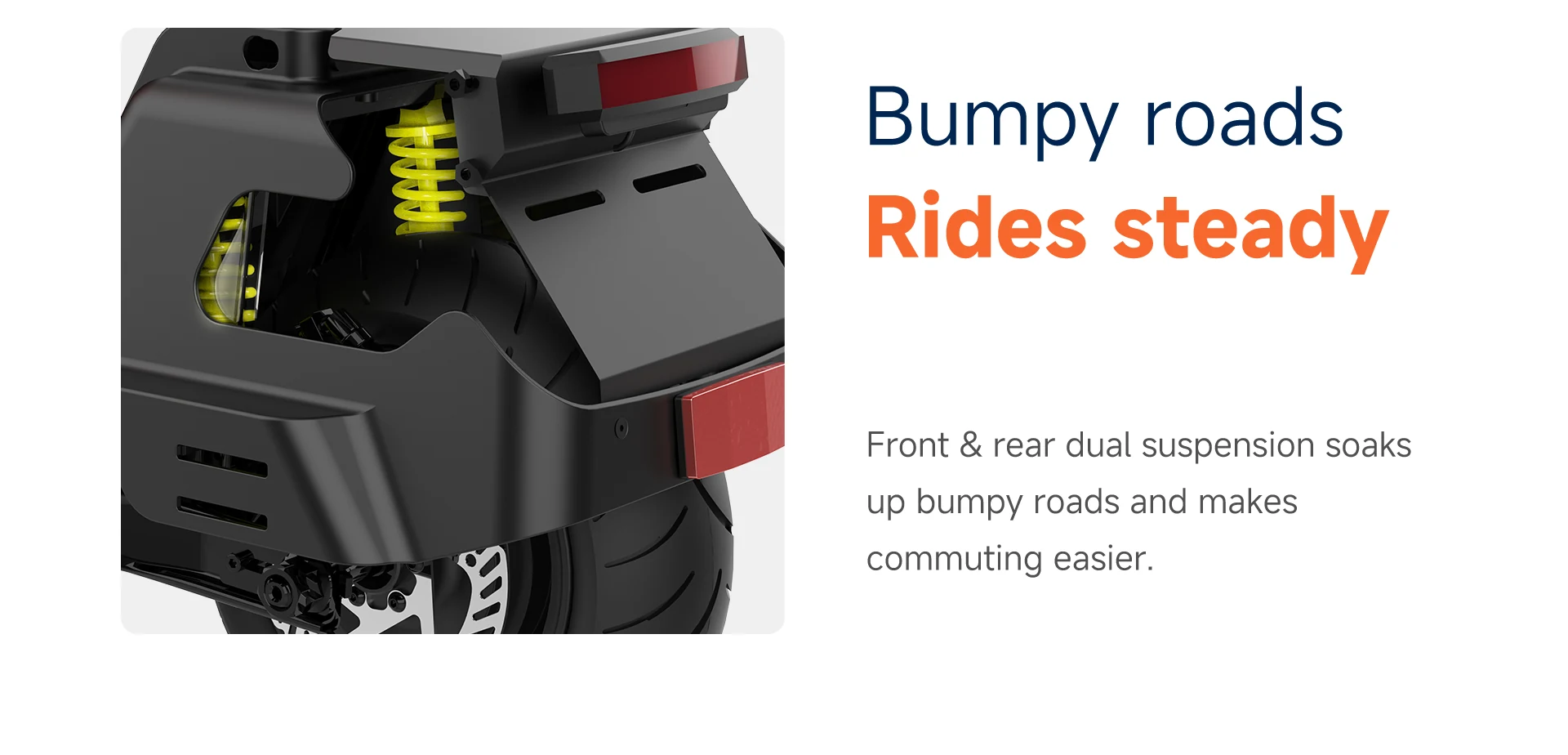

Laineng S109 smart security and anti-theft Laineng S109 precise location and anti-loss tracking Laineng S109 specialty solar panel Laineng S109 front and rear dual disc brakes Laineng S109 front and rear dual suspension Laineng S109 spacious non-slip deck Laineng S109 hidden folding hook Laineng S109 emergency charging port

Product Parameters

Model
S109
Charging method
Solar charging + emergency charging
Solar range extension
10–20 km/day
Battery range
35-40 km
Digital motor
500w
Braking system
Front and rear dual disc brakes
Shock absorption
Front and rear dual shock absorption
Battery capacity
48V 12Ah lithium-ion
Tires
280×100mm vacuum tire
Maximum speed
25 km/h
Rated load
≤ 120 kg
Waterproof rating
IPX5
Charger
48V 3A
Wheelbase
1150 mm
Overall dimensions
1480*580*1300 mm
Net / Gross weight
46 kg / 52 kg

*Factors affecting range include speed, load, frequency of starts and stops, and ambient temperature;
solar charging efficiency varies with sunlight intensity, shade, and parking angle.

Multiple color options – your choice

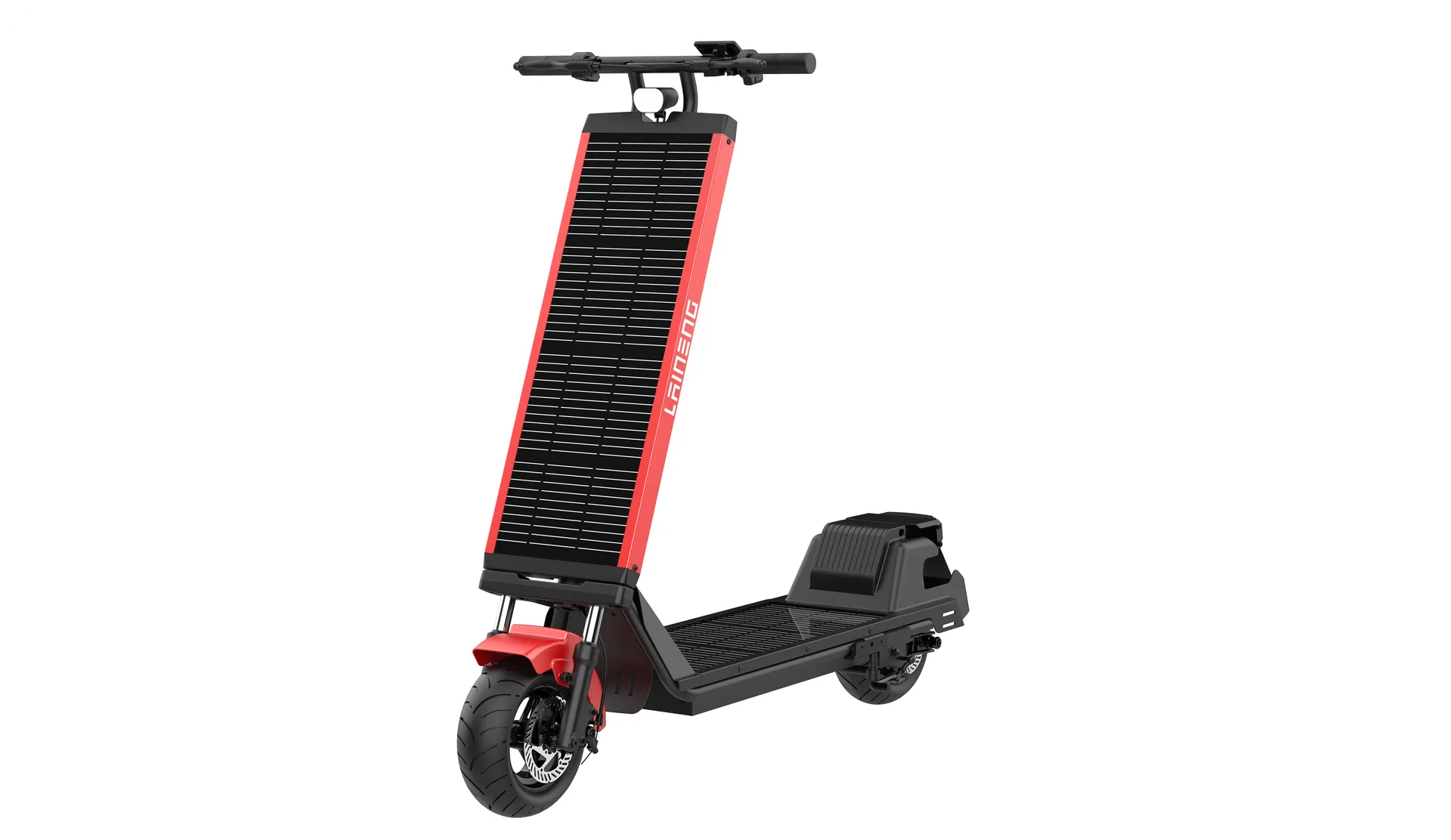

Laineng S109 solar e-scooter in red
Laineng S109 solar e-scooter in yellow

Frequently Asked Questions

Q: Can I ride it on consecutive rainy days with no sun?
A: Yes. The S109 is equipped with a 48V 12Ah lithium storage battery, delivering a pure-electric range of 35-40 km on a full charge. For extended rainy spells, it features an emergency charging port, so you can plug in the included 48V 3A charger just like a conventional e-scooter to top up the battery and keep riding with complete peace of mind.
Q: How far can it go with solar charging?
A: The S109 offers a pure-electric range of 35-40 km, and the solar panel adds another 10-20 km per day under sunny conditions, for a combined daily range of 45-60 km. Solar charging is automatic, so there is no fixed “full charge time” – simply ride whenever you have enough range for your trip.
Q: Is the solar panel durable? Will it break if bumped?
A: Under normal riding conditions it will not break unless deliberately damaged. The solar panel has a design life of 5-10 years – just keep the surface clean for long-term reliable use.
Q: What is the top speed?
A: The S109 features a 500W digital motor with a top speed of 25 km/h, in line with the speed limits for e-scooters in major markets such as Europe and Southeast Asia, balancing performance with riding safety. Please check your local regulations for specific road-use requirements.
Q: Is it easy to steal?
A: The S109 comes standard with a vehicle anti-theft lock that requires a key to unlock before riding, giving you confidence for short-term parking. For added security, we recommend using a quality lock and parking in a supervised area.
Q: Can I ride in the rain? Is it waterproof?
A: Yes. The vehicle carries an IPX5 waterproof rating, so everyday riding in the rain is not a problem. Please avoid prolonged immersion or direct high-pressure washing. If solar charging weakens during long rainy periods, simply top up via the emergency charging port.
Q: How are the brakes and tires?
A: Front and rear dual disc brakes deliver responsive, reliable stopping power, paired with front and rear dual suspension to smooth out bumps and improve stability. The 280x100mm tubeless tires offer solid grip, are wear-resistant and puncture-resistant, and handle uneven roads with ease.
Q: What is the maximum load capacity?
A: The S109 is a single-rider scooter with a rated load capacity of up to 120 kg. Please do not carry a passenger or exceed the load limit, as this may affect braking and stability.
Q: What is special about the height of the scooter?
A: The S109 measures 1480x580x1300mm, with an overall height of 1300mm – noticeably higher than ordinary scooters. Combined with a 1150mm wheelbase, it offers a more relaxed riding posture and a wider field of view, ideal for commuters who prefer a taller stance.
Q: Do I need to charge it manually very often?
A: No. For short daily rides of 5-10 km, combined with solar top-up on sunny days, you can go a long time without manual charging. Only during prolonged rain or long-distance rides will you need to top up via the emergency charging port.
Q: Does it need registration or a license plate to ride?
A: Regulations vary widely between countries and regions: some treat e-scooters as non-motorized vehicles requiring no registration, while certain cities require registration, insurance, or restrict where they may be ridden. We recommend checking with your local transport authority before ordering – we can provide product compliance documentation to support your application.
Q: Is the deck wide? Can it carry things?
A: The S109 features a wide, anti-slip deck for stable and comfortable standing, making it easy to carry a backpack or other personal items while riding.
Q: Will the body age if left outdoors in sun and rain?
A: No. The vehicle carries an IPX5 waterproof rating, and its key components are designed for outdoor use with strong corrosion and rust resistance, so everyday outdoor parking will not affect normal use.
Q: Will constant sun exposure drain the battery faster?
A: No. The solar panel uses low-voltage balanced charging to prevent overcharging, which actually helps reduce how often you need to plug in and extends battery life. Just keep the panel surface clean and avoid prolonged heavy loads or deliberate damage.
Q: Is solar charging safe?
A: Absolutely. For riding, front and rear dual disc brakes and dual suspension ensure stability. For charging, low-voltage balanced solar charging eliminates the safety risks associated with high-voltage overcharging in conventional chargers, for added peace of mind.
Q: How much does it weigh?
A: The S109 has a carton net weight of 46 kg and a gross weight of 52 kg (net weight covers the scooter with inner packaging; gross weight includes the outer carton for shipping). It is lighter than a conventional electric moped, making it easier to push and move around.
